HTKR PACKAGING MACHINES & AUTOMATIONS
The Packaging Hub
Our core expertise in End of Line Automation solutions are
We are in the packing industry for last 20 years with rich experience in all the areas of packaging - primary, secondary and treachery. We worked with many industrial verticals including Pharma, Packaging, Food & Beverage, FMCG, Metal, Plastic, Oil, Explosive etc.
Case Erector with gluing or bottom taping or both
Case Filling / Case Packing
Flap Closing & top taping
Palletizing
Conveying systems (variety of conveyors – belt, roller, chain link, plastic belt, telescopic etc) &
Automation
Brief About Our Activities
Bottle Rinser
Liquid / powder / cream Filler
Capper
Labeler
Case Packer
Carton Erector

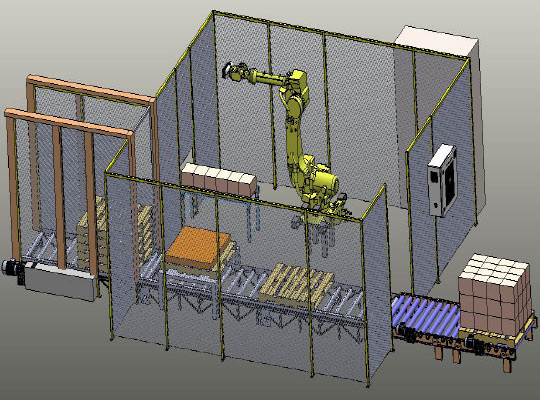

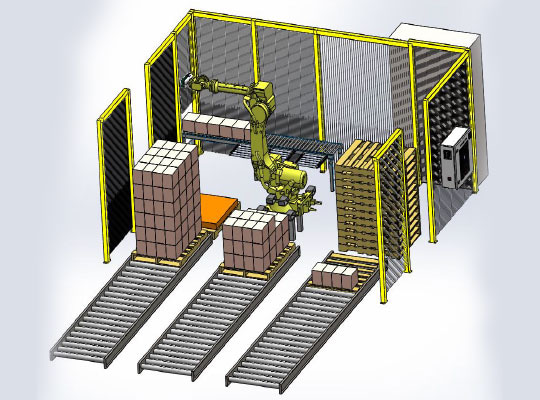

Palletizer
The systems are made up either with the conventional motion control / gantry-based systems or the latest, the robotic technologies.
Our esteemed customer list is not limited to

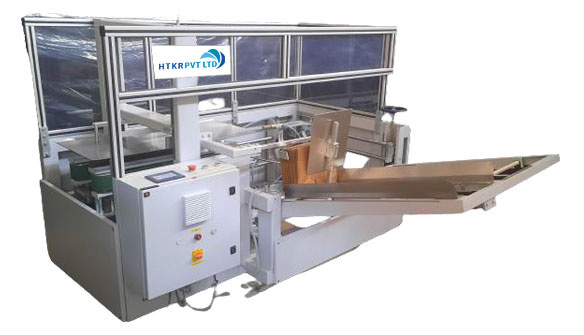

Carton Erector
Specifications
Power Requirements: 230V AC, 50 HZ, Single phase.
Air supply: Dry air at 4 bar 0.8 ltrs/cycle.
This machine can accommodate tape width of 3". An optional standard machine is suitable for tape width of 2.5”, 2”.
Standard tape roll length of 650 m and 1000 m can be used.
Case Packer

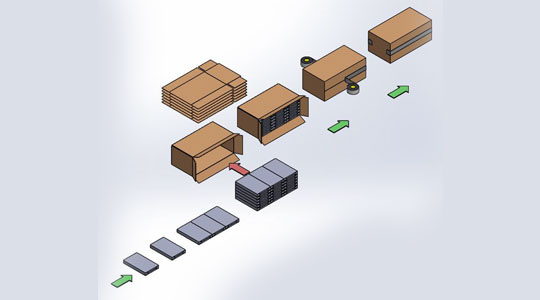

Side Loading of Boxes
Side loading case packer uses servo for precise case forming and indexing.
A gentle pack pattern collation system efficiently stacks product and loads cartons into cases while the next pack group is assembled.
Accurately handle a wide array of products in continuous motion.
Machine is designed specific to your application.

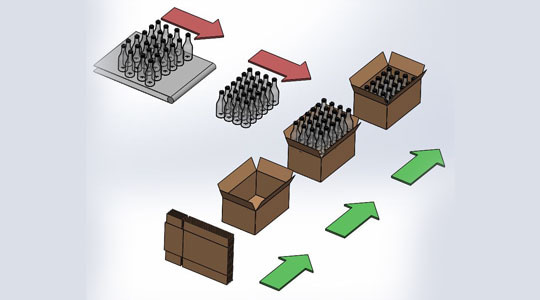

Top Loading of Bottles
Top loading case packer uses servo for precise case forming and indexing.
A gentle pick-and-place pack pattern collation system efficiently stacks product and loads cartons into cases while the next pack group is assembled.
Accurately handle a wide array of products in continuous motion.
Machine is designed specific to your application.

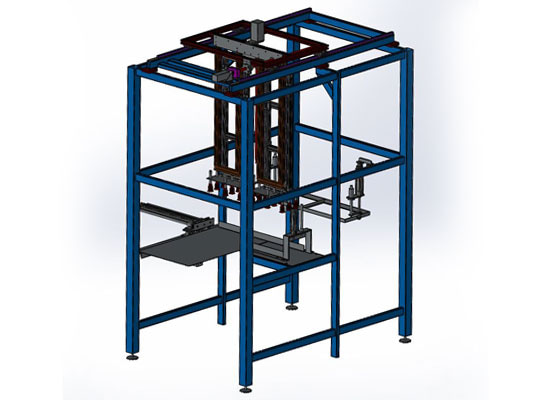

Pick & Place for Cartridges
About Pick & Place
The cartridges by means of imported vacuum grippers picks up and gently places on cartons.
Synchronization of the various machine operations is done by means of PLC.
Gripper head unit is having vacuum grippers to pick the product with the help of vacuum ejector.
The machine can run at variable speed.
Cartridge size: Dia 83* 500 long.
Matrix: 3*3
Pick & Place for Cartridges
About Pick & Place
Cartridge casing operation takes place by means of servo drive with X and Z movement with gantry system.
The cartridges by means of imported vacuum grippers picks up and gently places on cartons.
Synchronization of the various machine operations is done by means of PLC.
Gripper head unit is having vacuum grippers to pick the product with the help of vacuum ejector.
The machine can run at variable speed.
Cartridge size: Dia 83* 500 long.
Matrix: 3*3
Drum Palletizer
About Drum Palletizer
This is a "pick and place" Palletizer.
An automated machine that lifts metal/plastic from an in feed conveyor and carries them to a designated pallet.
A special vacuum mechanism is used to prevent any distortion of metal and plastic containers.
Rate: 100 per hour.
Load Capacity: 350kg/drum
Matrix Formation: 2*2
Suitable for various types of pallet.
Manual handling of drums is no longer required

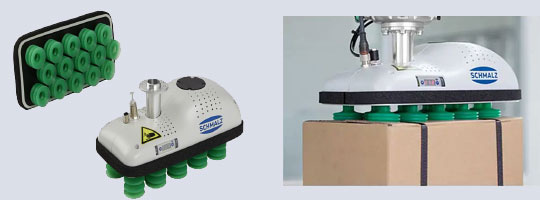

Robot Gripper
About Robot Gripper
This vacuum grippers works gently & smoothly.
Number of suction cells: 15
Load Capacity: 350 N
Weight of Gripper: 1.67 kg
About Robot Gripper for bottles
Air gripper for bottle.
This air grippers works gently & smoothly.
Number of suction cells: 4
Load Capacity: 2.5 liter bottle
Weight of Gripper: 1.5 kg
